Design Brief

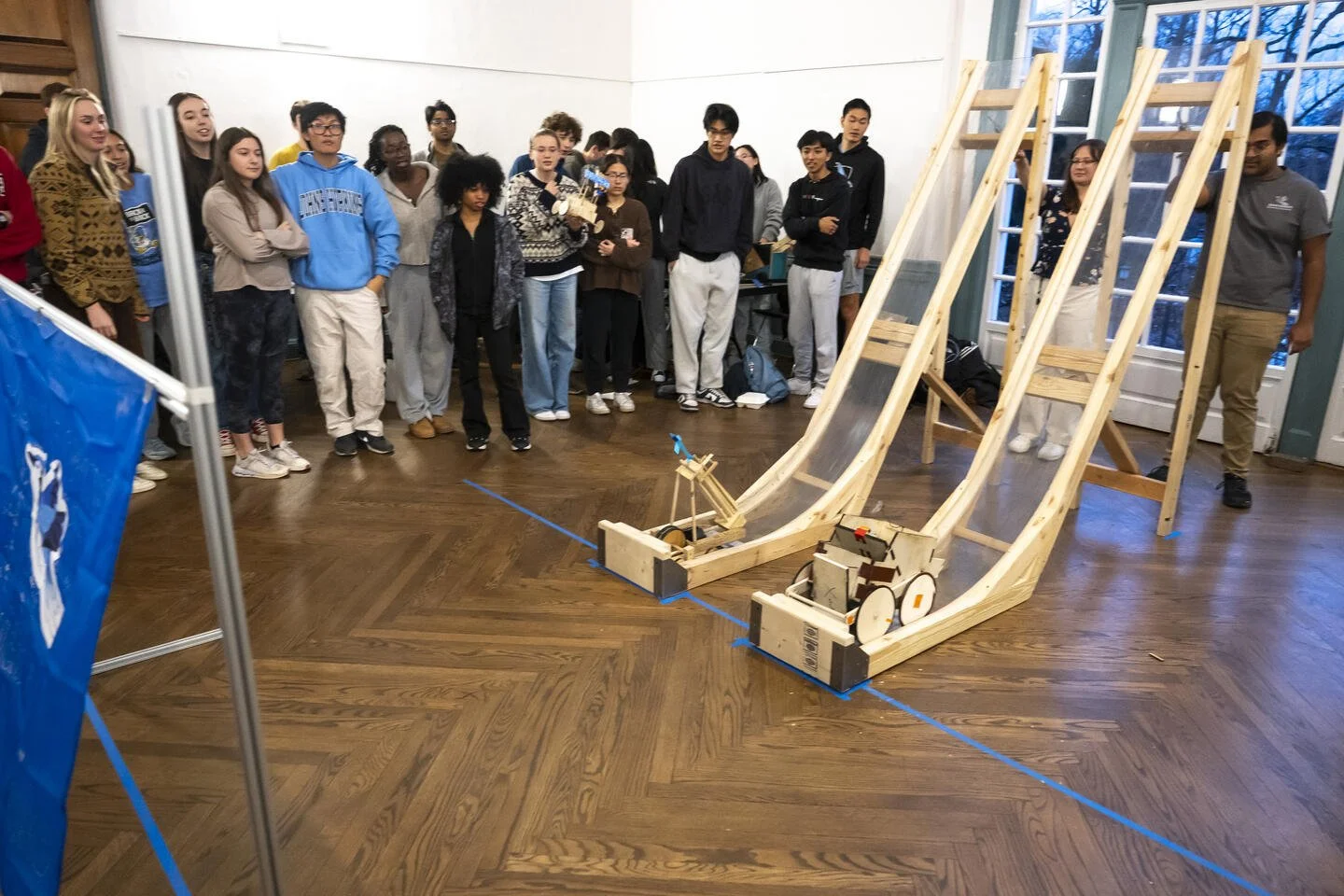

“Design and build a vehicle capable of travelling down a ramp and colliding with a barrier to launch a Blue Jay glider over an obstacle, across the Great Hall, and into the fireplace on the east side of the room.”
Visit this JHU HUB article to learn more about our team and the competition
Ideas

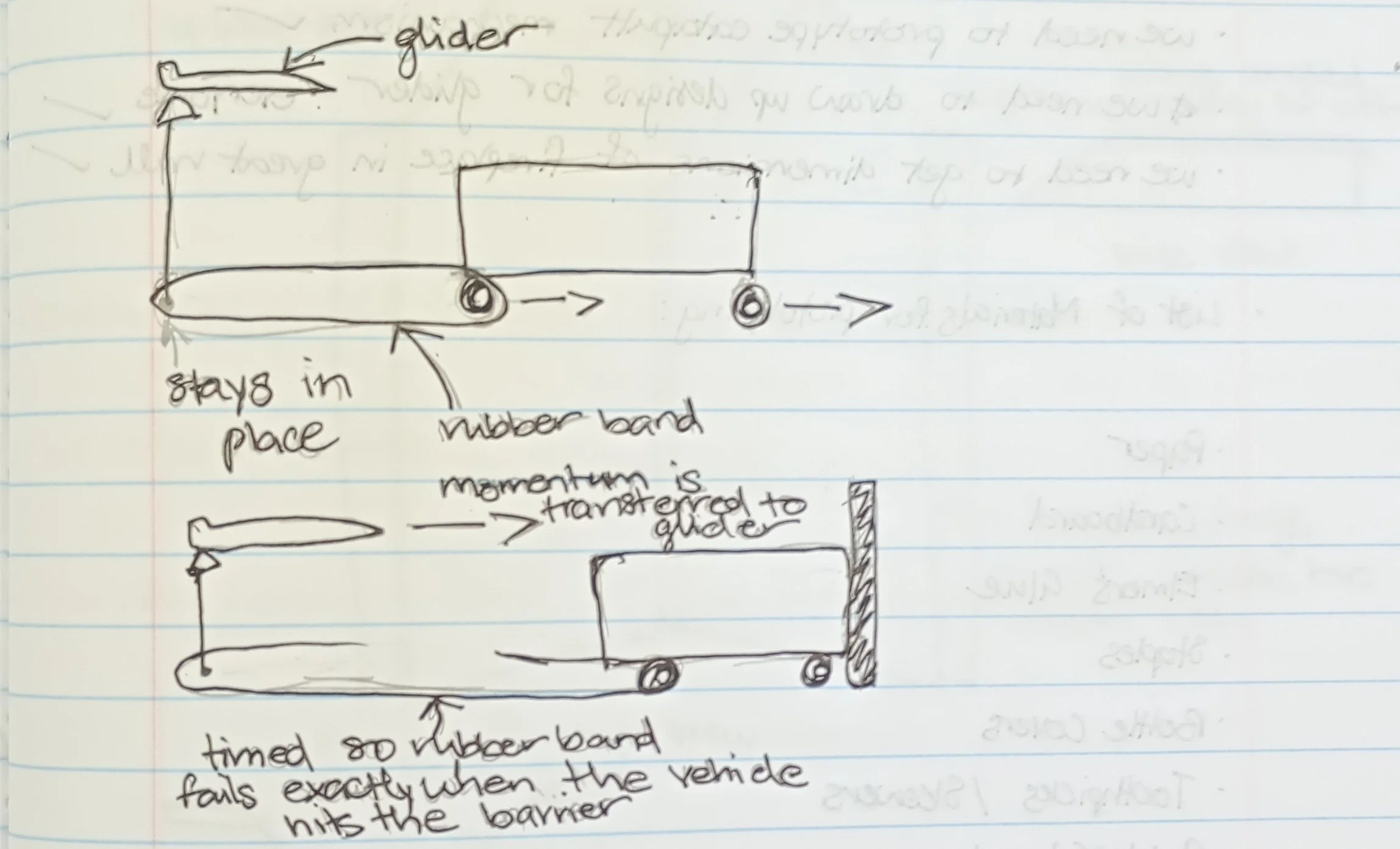

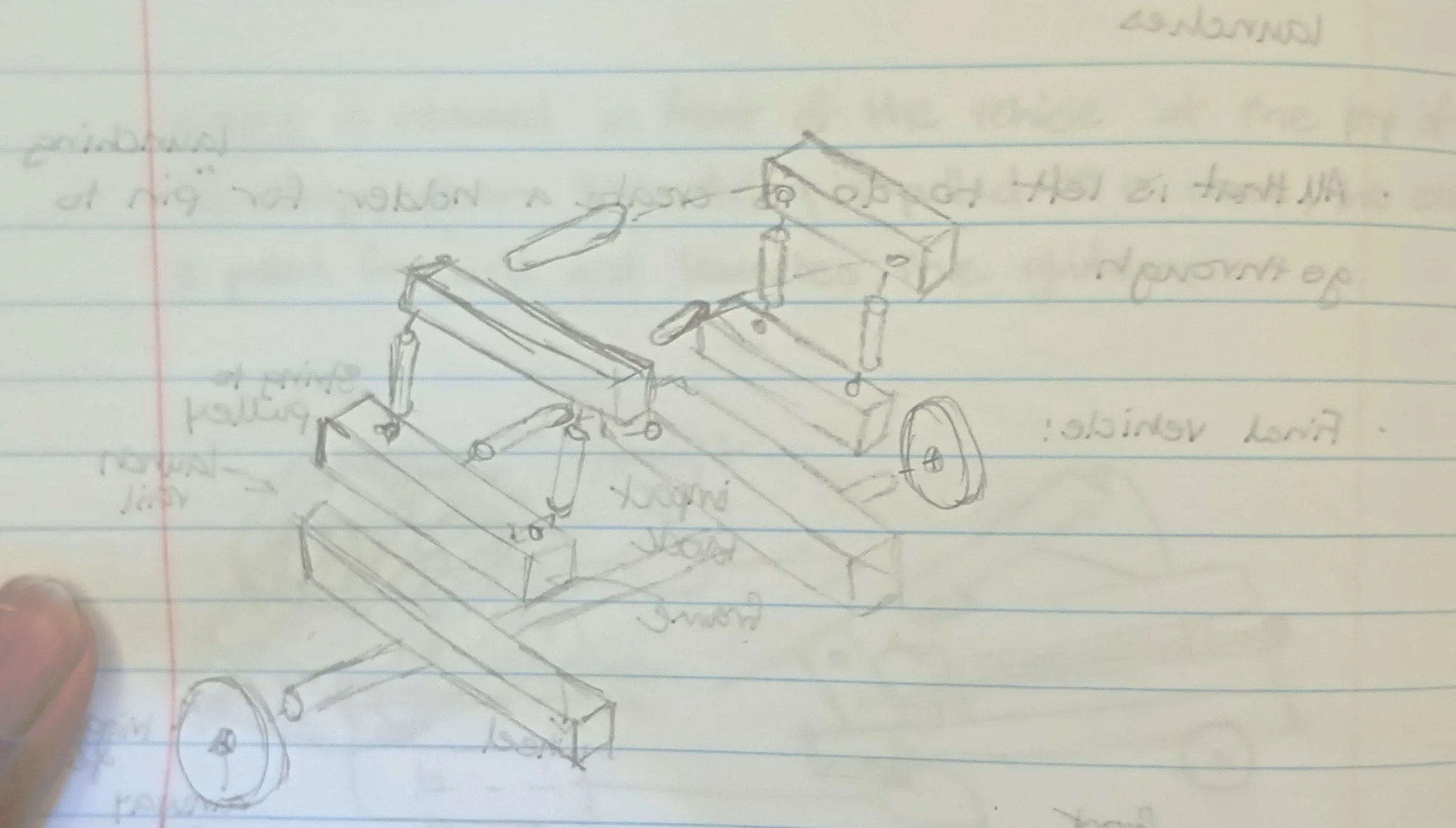

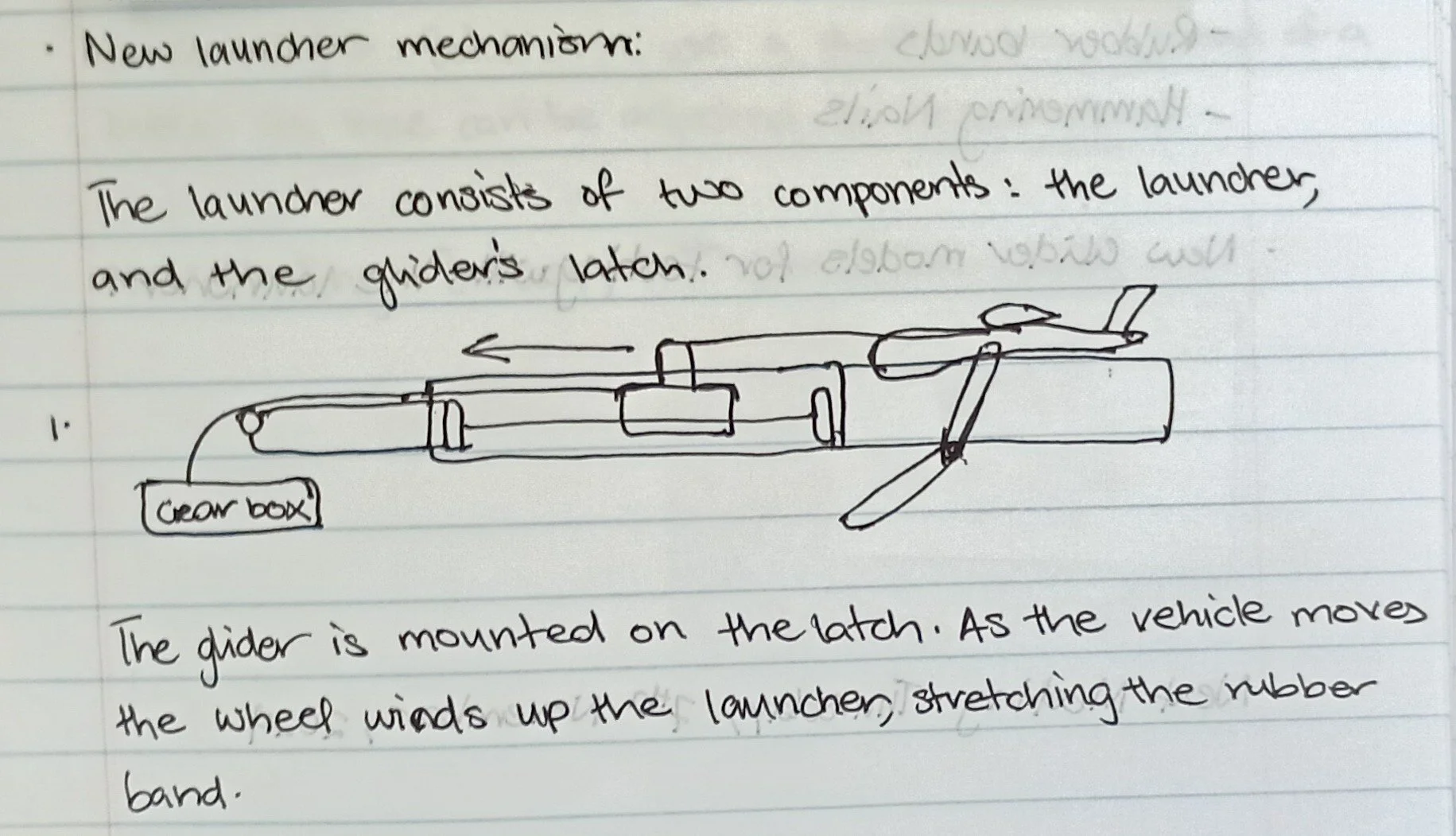

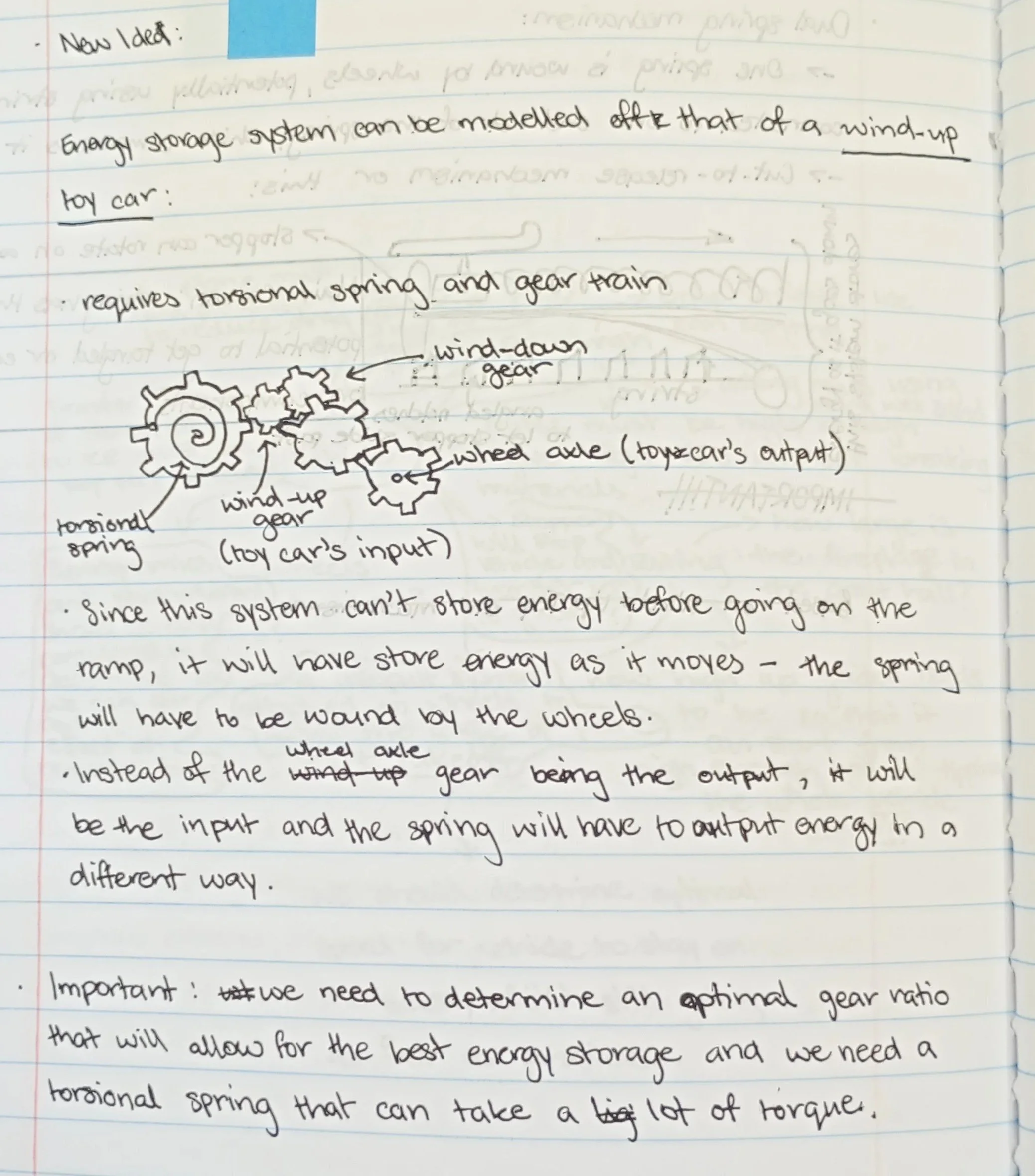

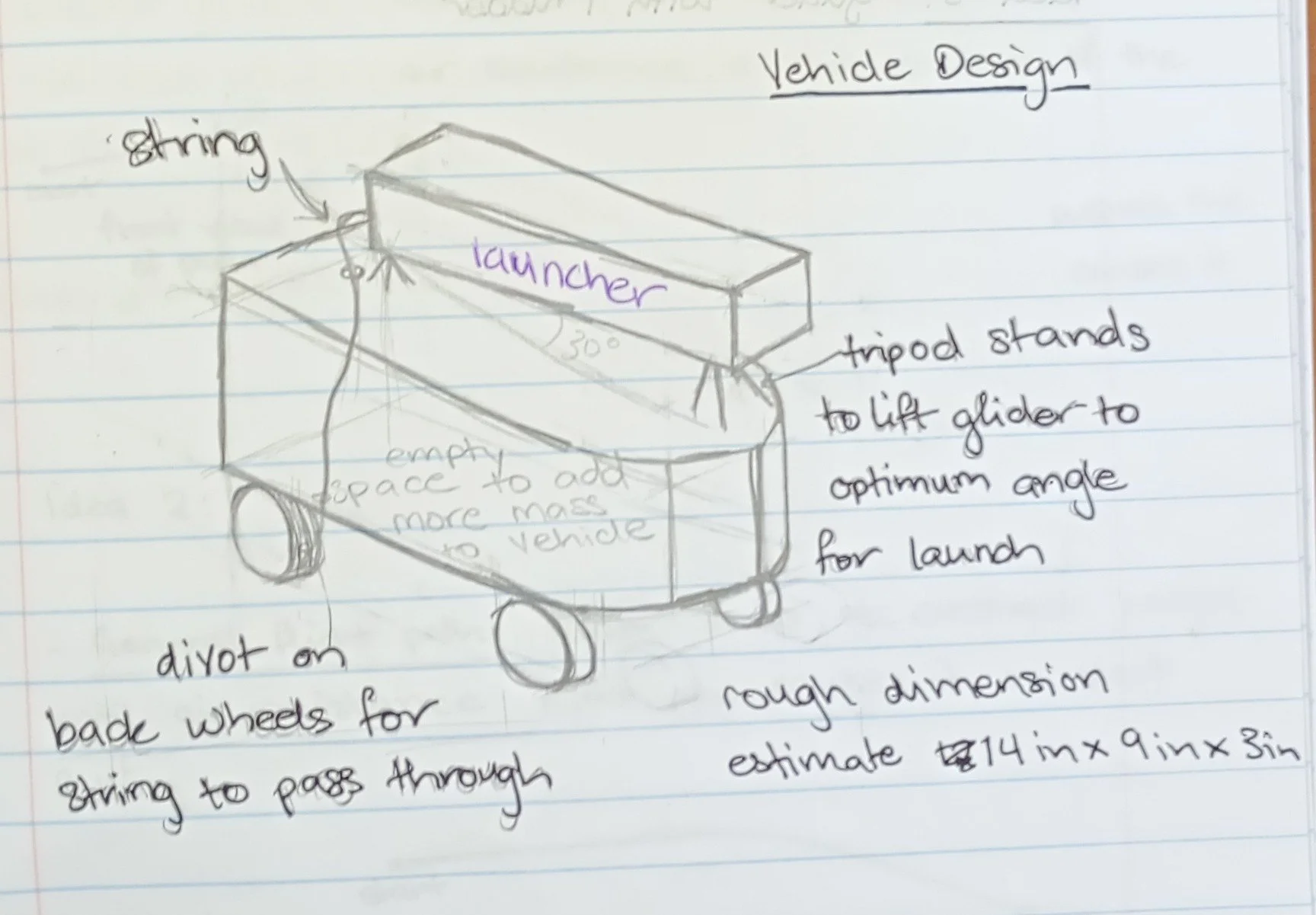

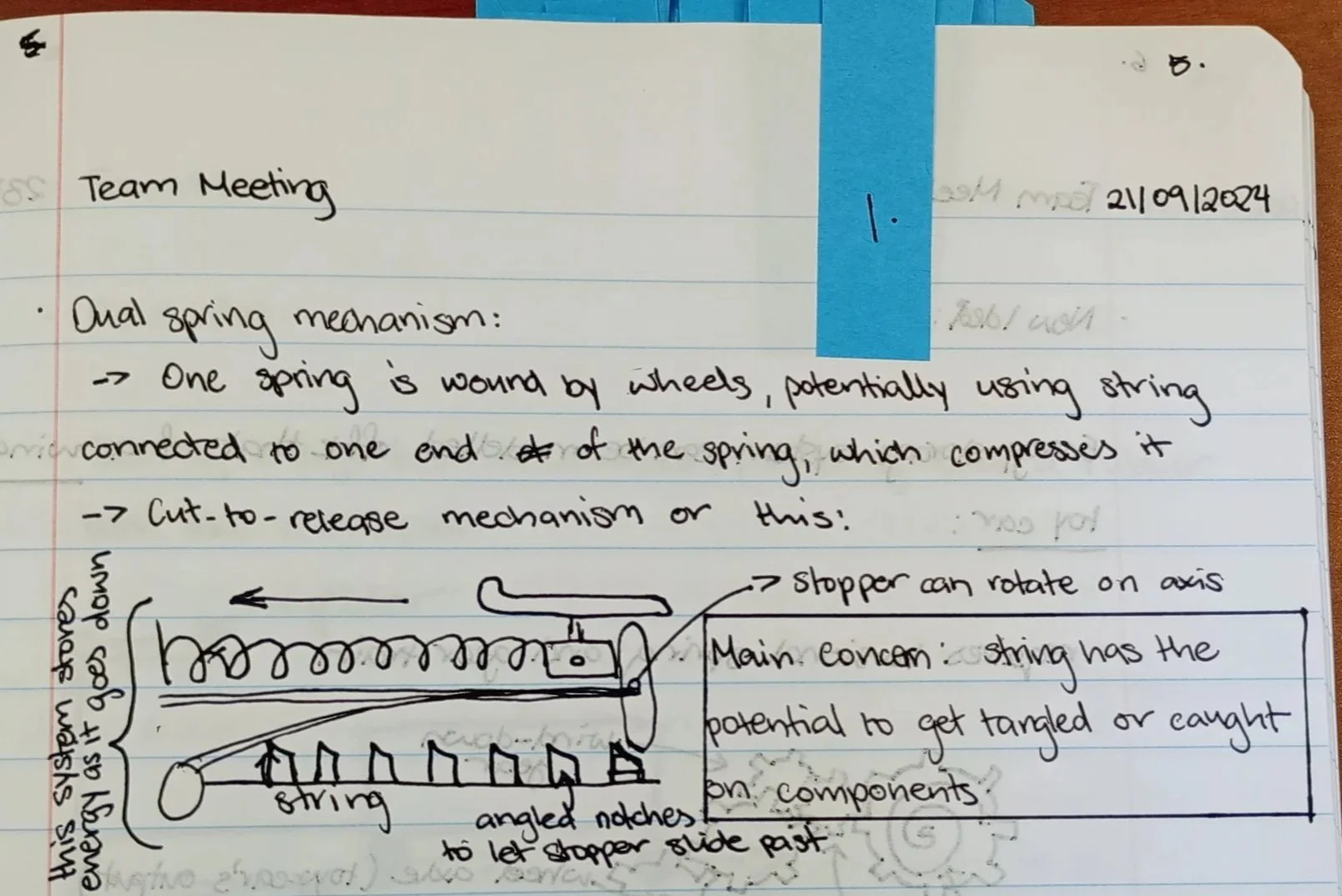

Pictures shown here are of ideas we came up with throughout the design process to meet the brief.
Approach

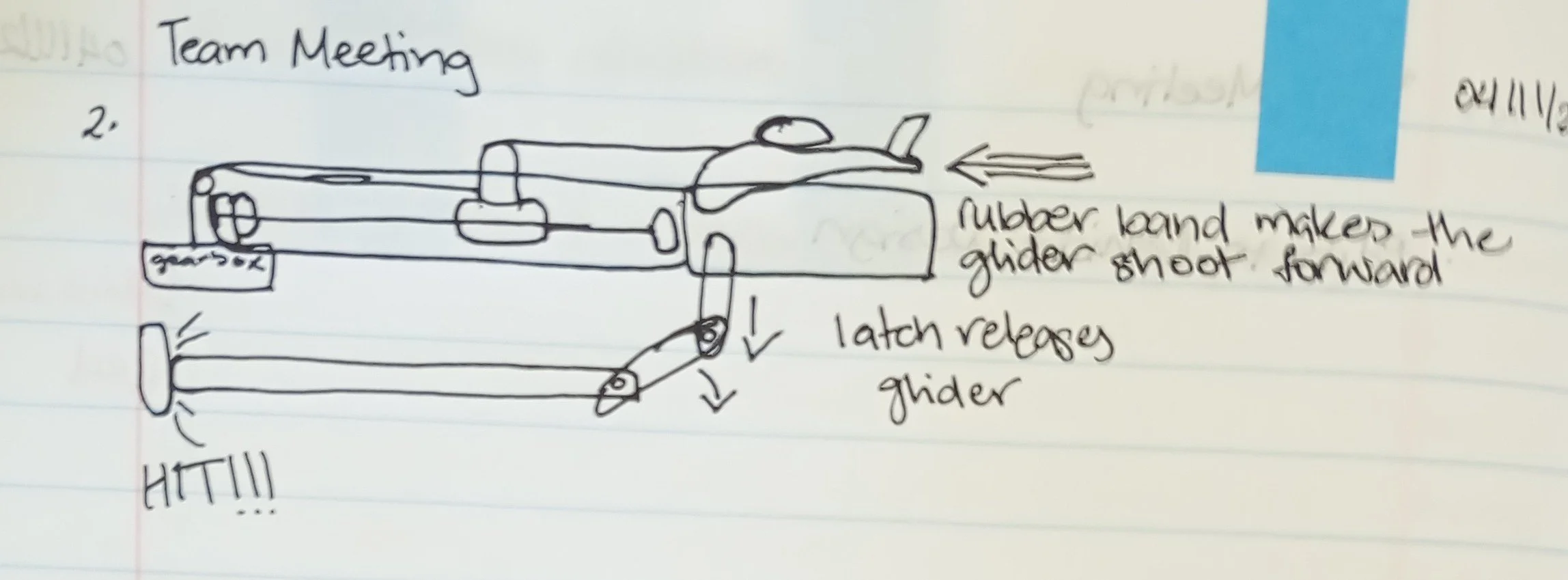

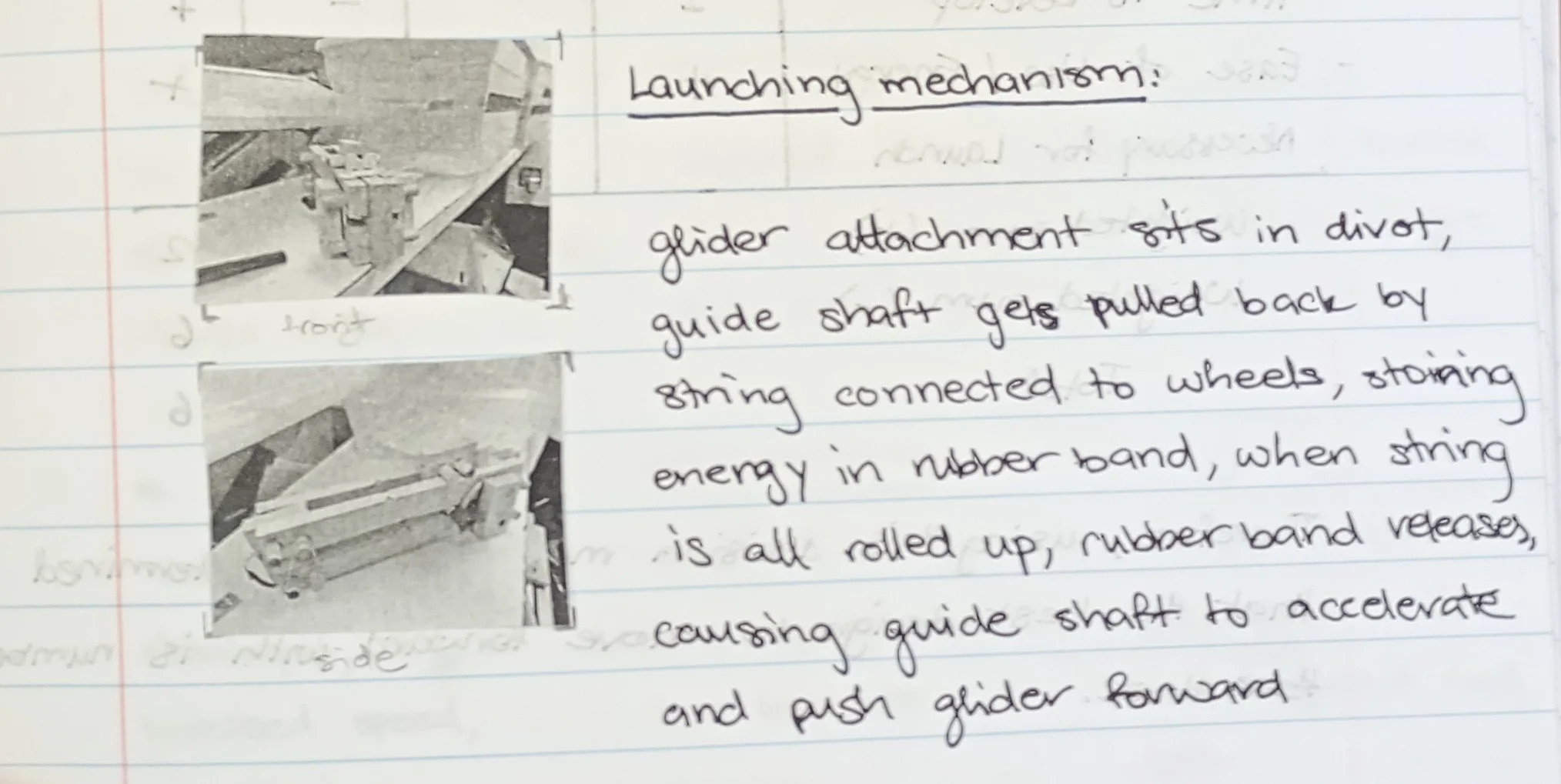

After multiple rounds of design and testing, the approach chosen was to use torque from the axle to wind up the launcher mechanism which would when then store up this energy and release into the glider upon impact. Seen below:

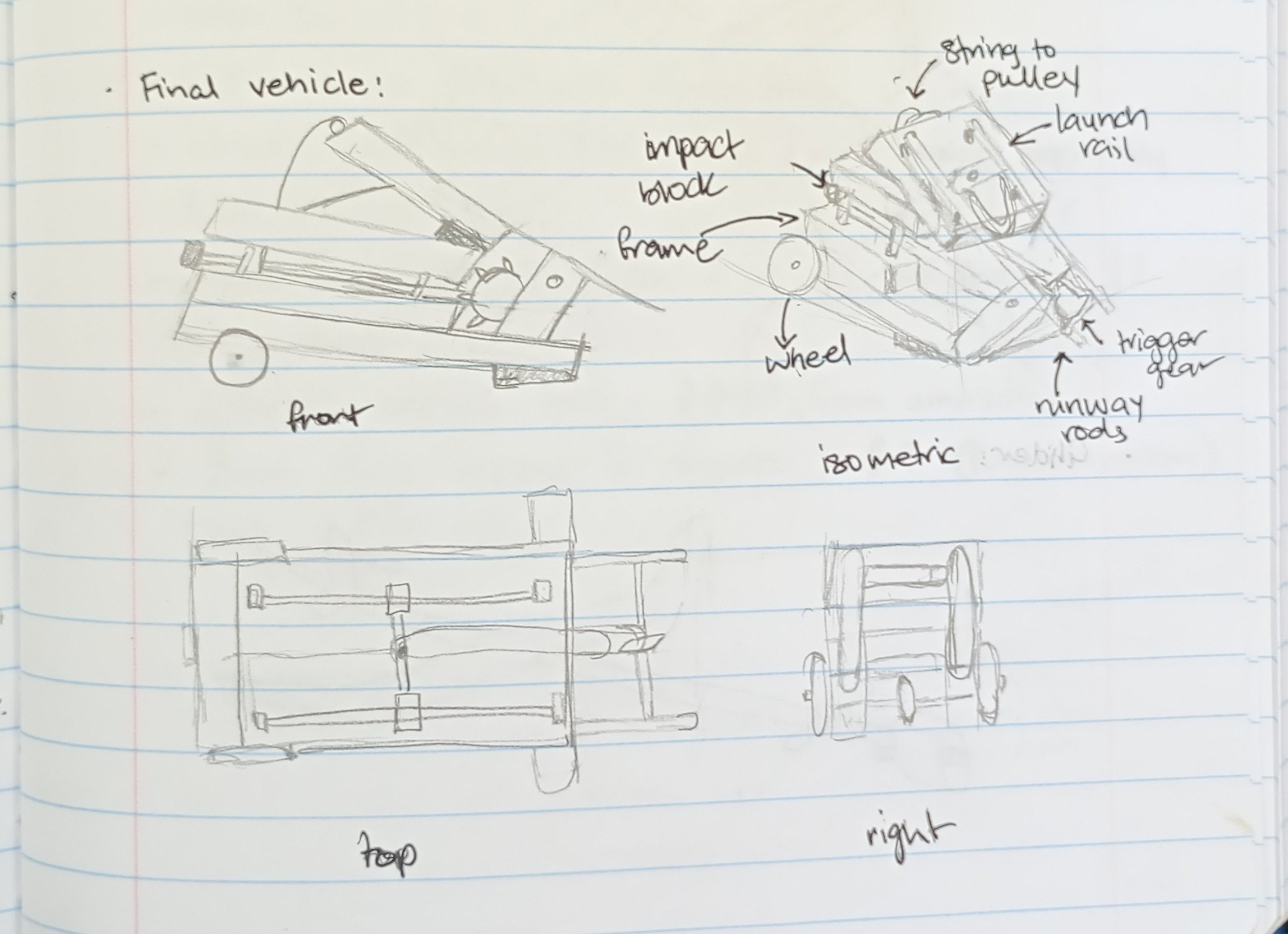

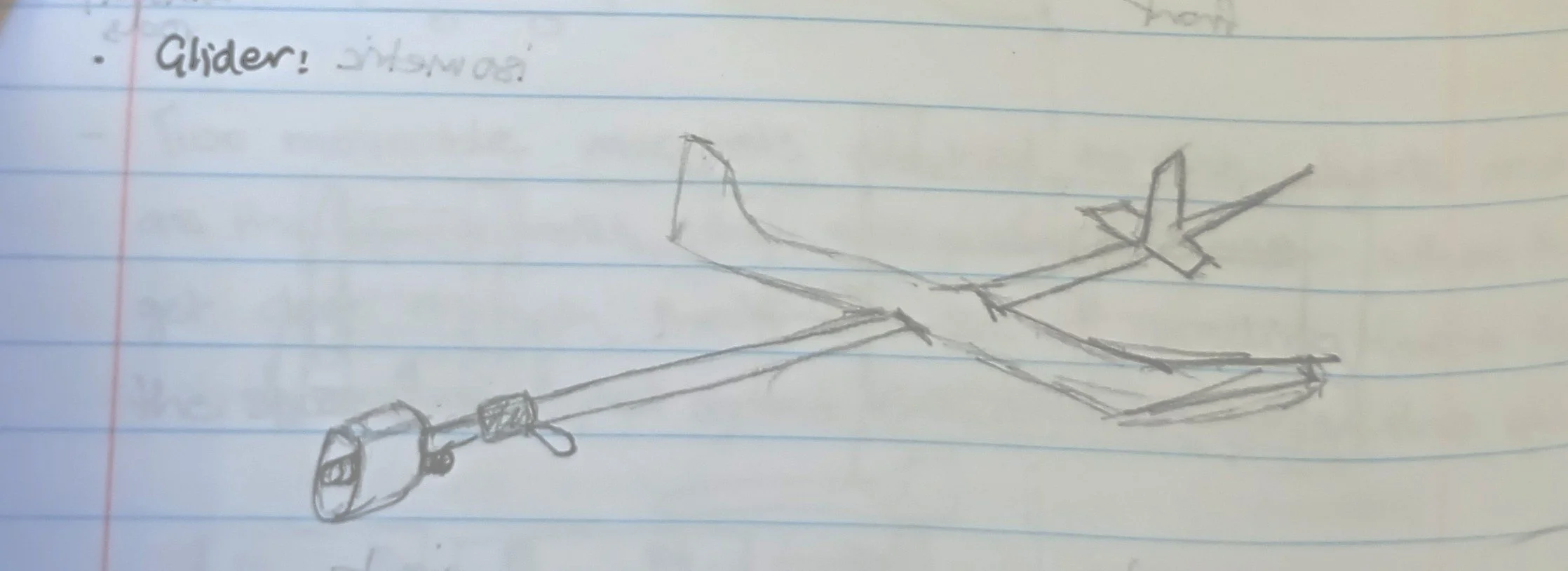

Orthographic and Isometric Drawings

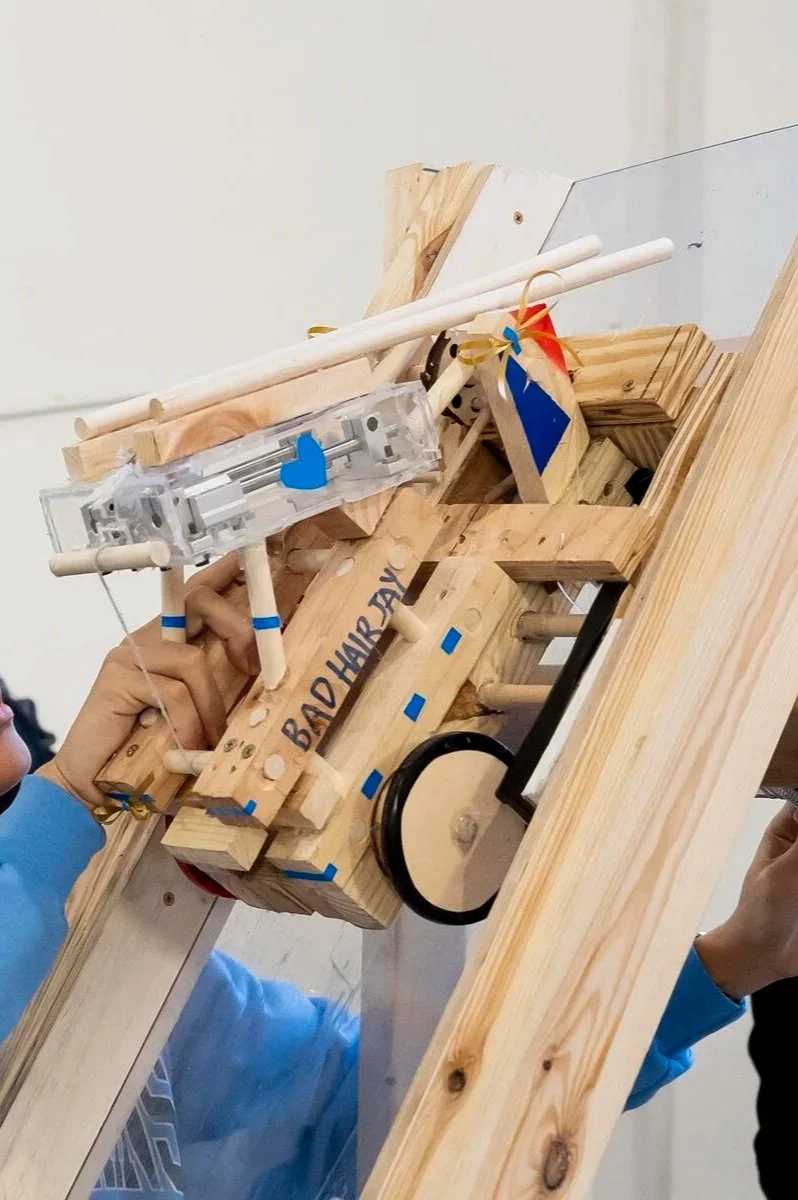

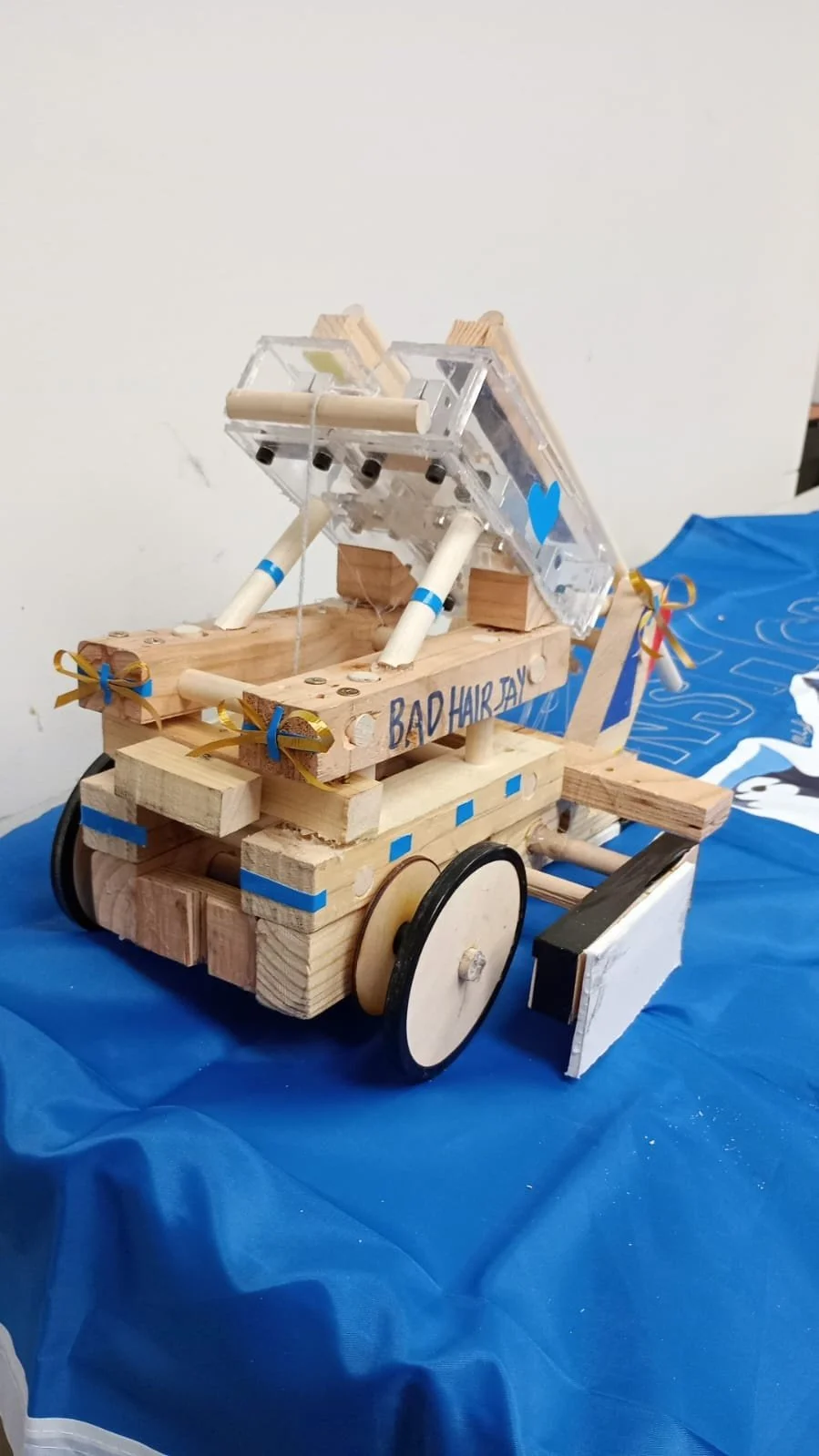

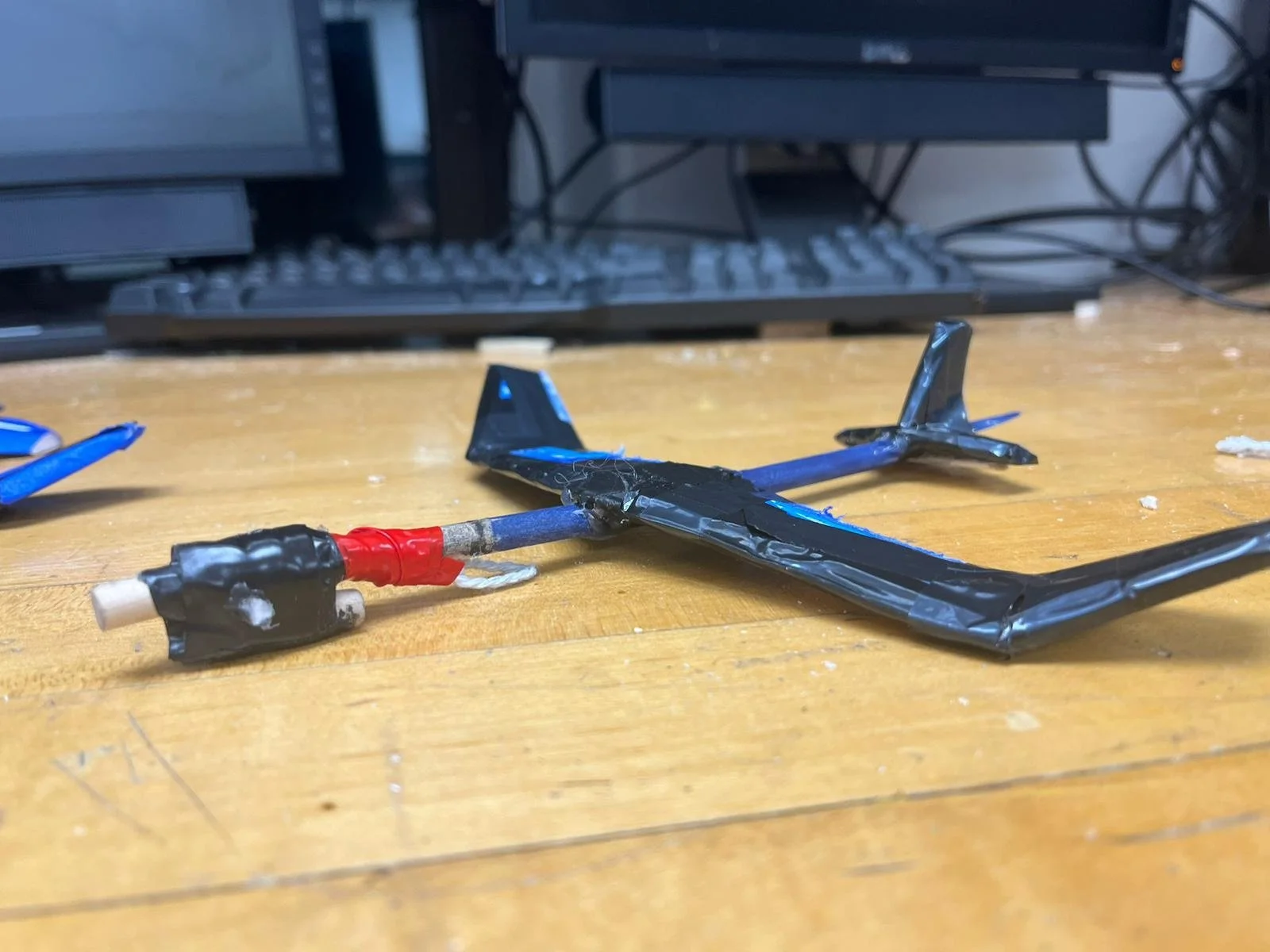

Final Vehicle and Glider

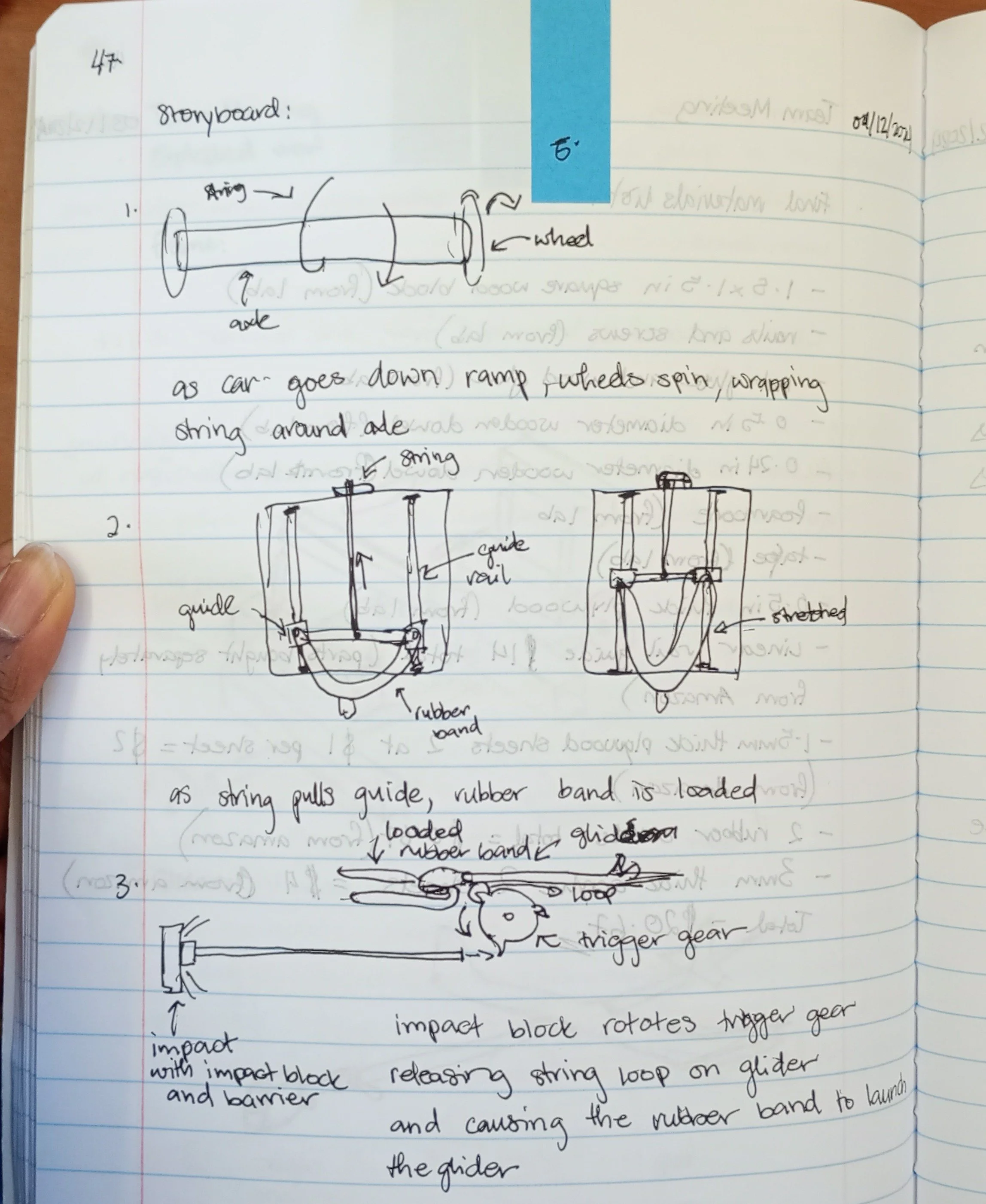

Storyboard
A storyboard of our final vehicle and glider from the start of a match to the glider coming to rest. Seen below:
